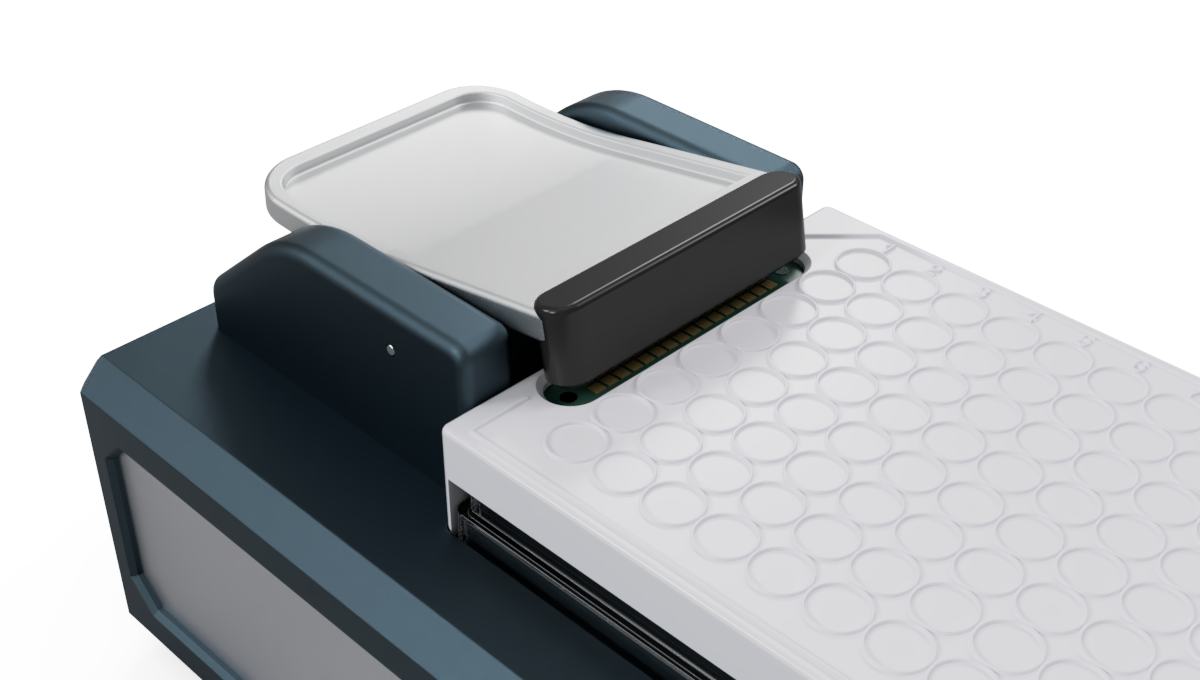

8-channel programamble galvanostat, top side view

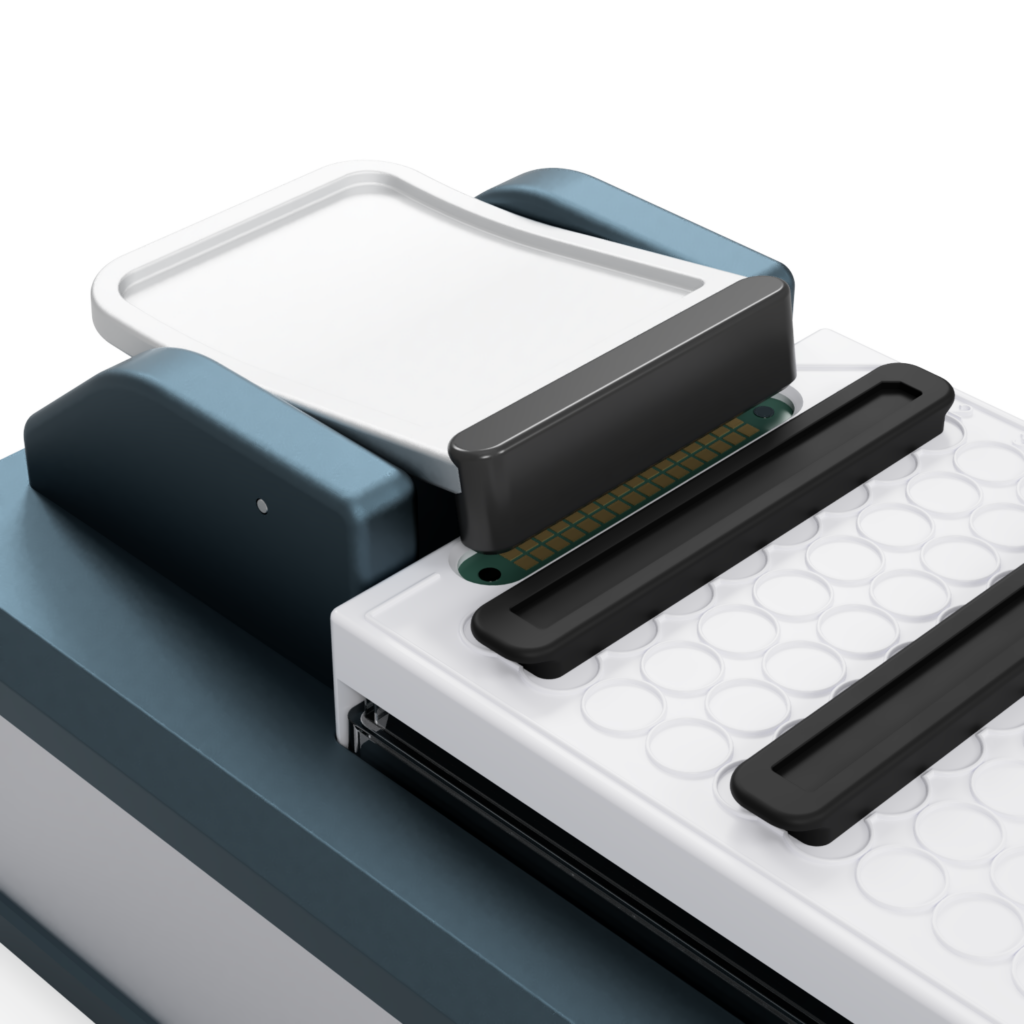

8-channel programamble galvanostat, detail on oppend locking mechanism
Multichannel Electrochemical System - universal, plug-and-play solution designed to deliver programmable electrochemical (galvanic) treatments directly to cell cultures in standard multi-well microplates - top corner view_2

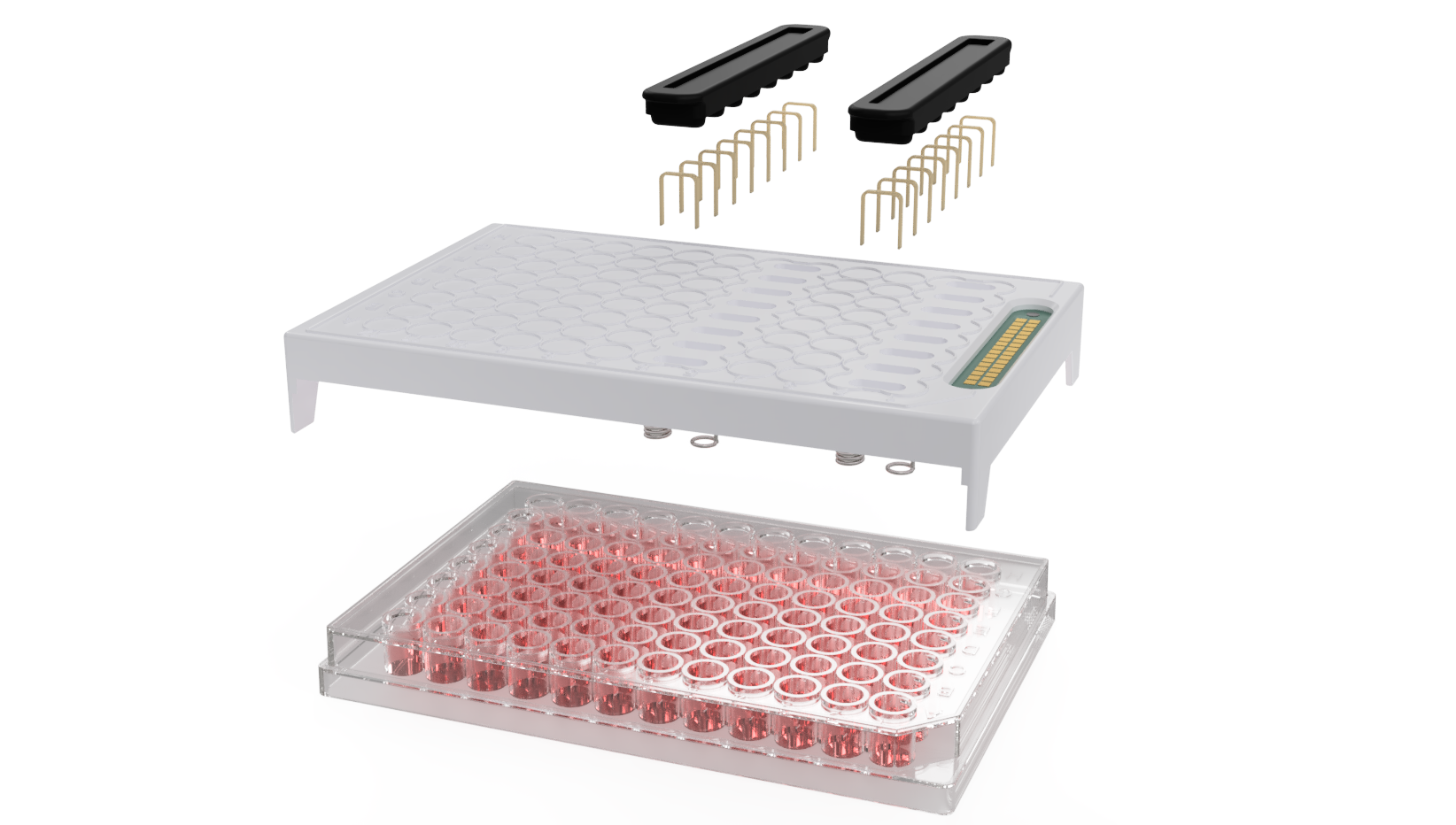

BRICK 2-well electrode configuration - full breakout view
Multichannel Electrochemical System - universal, plug-and-play solution designed to deliver programmable electrochemical (galvanic) treatments directly to cell cultures in standard multi-well microplates - bottom side view
Request a Quote

Precision Electrochemical Control for Cell-Based Experiments

Electrophorus’ Multichannel Electrochemical System is a universal, plug-and-play solution designed to deliver programmable electrochemical (galvanic) treatments directly to cell cultures in standard multi-well microplates. Whether you’re running exploratory screening or generating statistically robust data, this system brings scalability, precision, and flexibility to your in vitro bioelectrochemical research.

Designed for Incubators and Laminar Flow Hoods

The system includes:
BRICK 2-well electrode configuration - sliding into the 96 microplate

BRICK

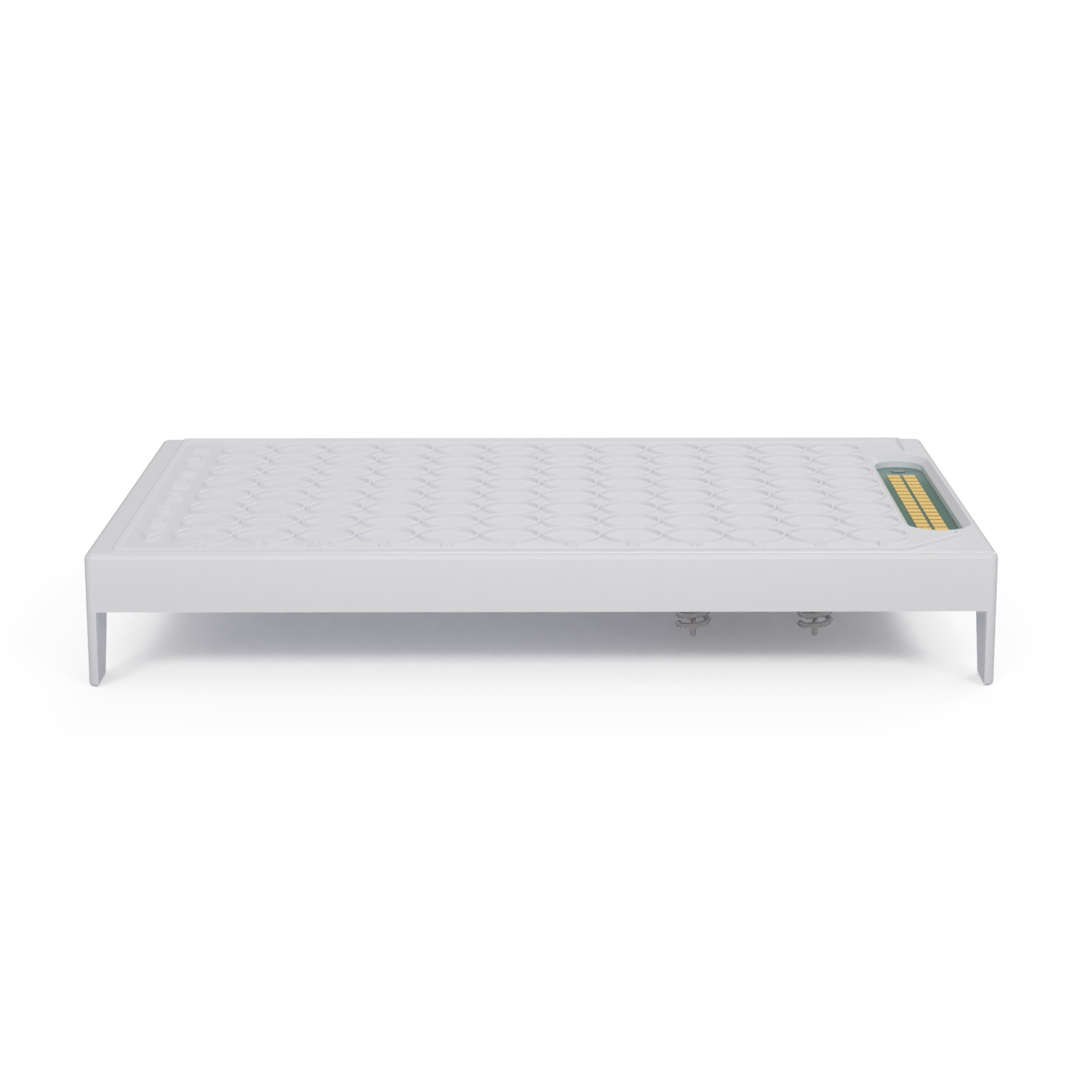

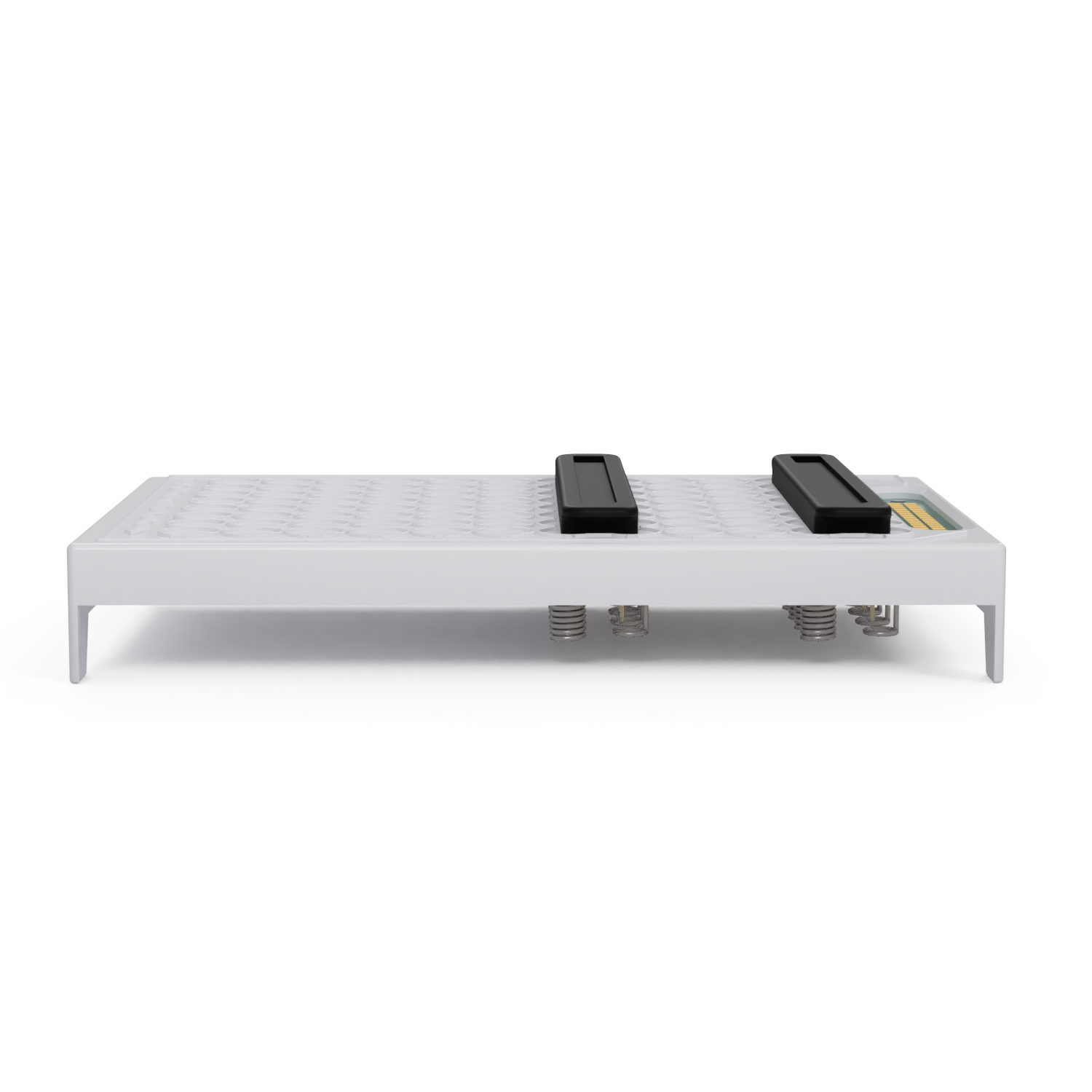

A multivariant microplate lid with integrated electrodes

8-channel programamble galvanostat, top corner view - without electrode system

Galstat 8C

An 8-channel programmable galvanostat

Together, they enable advanced experiments in bioelectronic medicine, electrochemical tissue modulation, and more.

Adaptable to Any Experimental Need

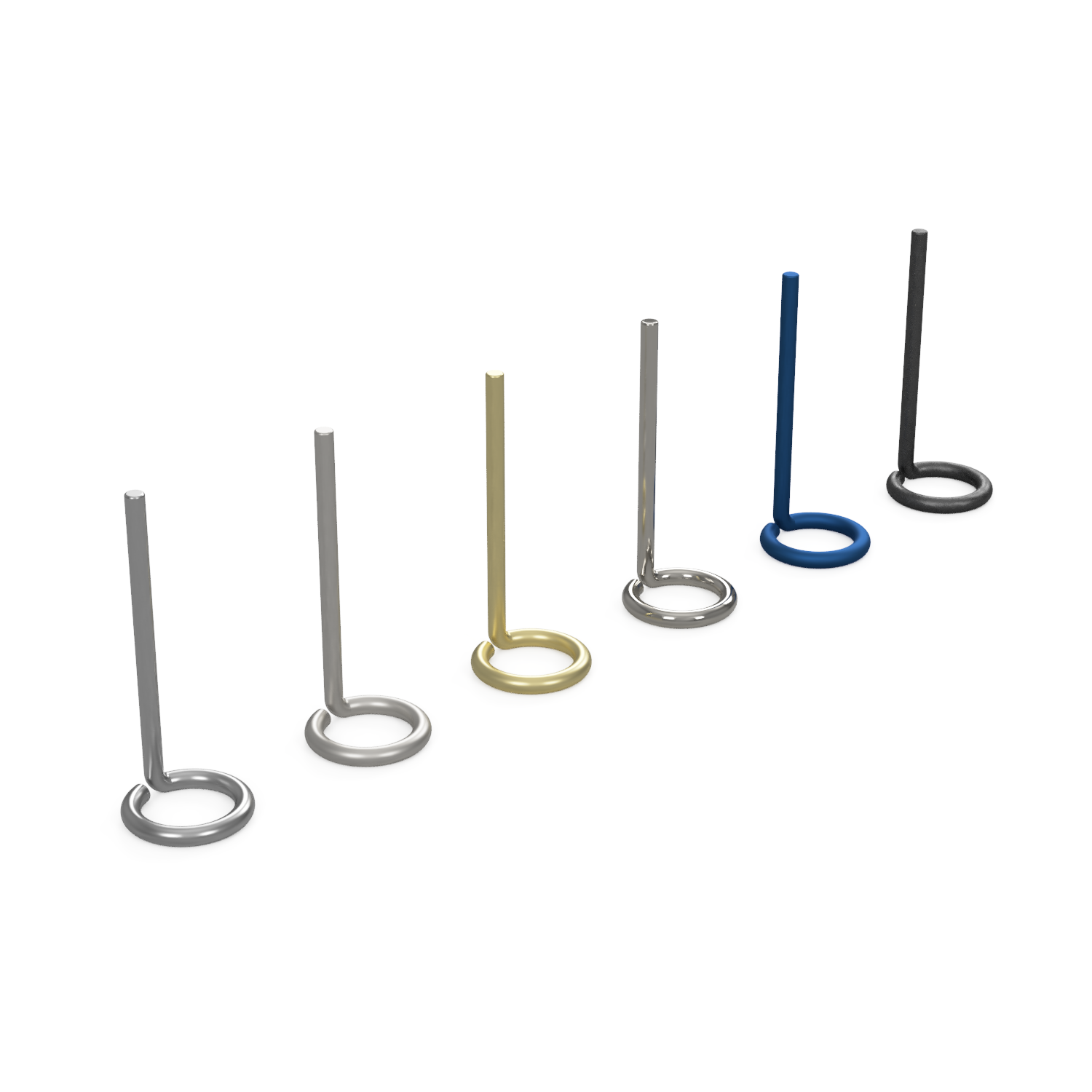

electrode materials aviable for our multichannel electrochemical systems featuring: Stainless steel, platinum, gold, titanium and titanium ocated with PEDOT:PSS polymer and Graphite

Wide Selection of Electrode materials

Choose from Stainless Steel, Titanium, or Titanium coated with Gold, Platinum, PEDOT:PSS and Graphite.

Multichannel Electrochemical System - universal, plug-and-play solution designed to deliver programmable electrochemical (galvanic) treatments directly to cell cultures in standard multi-well microplates - top corner view_2

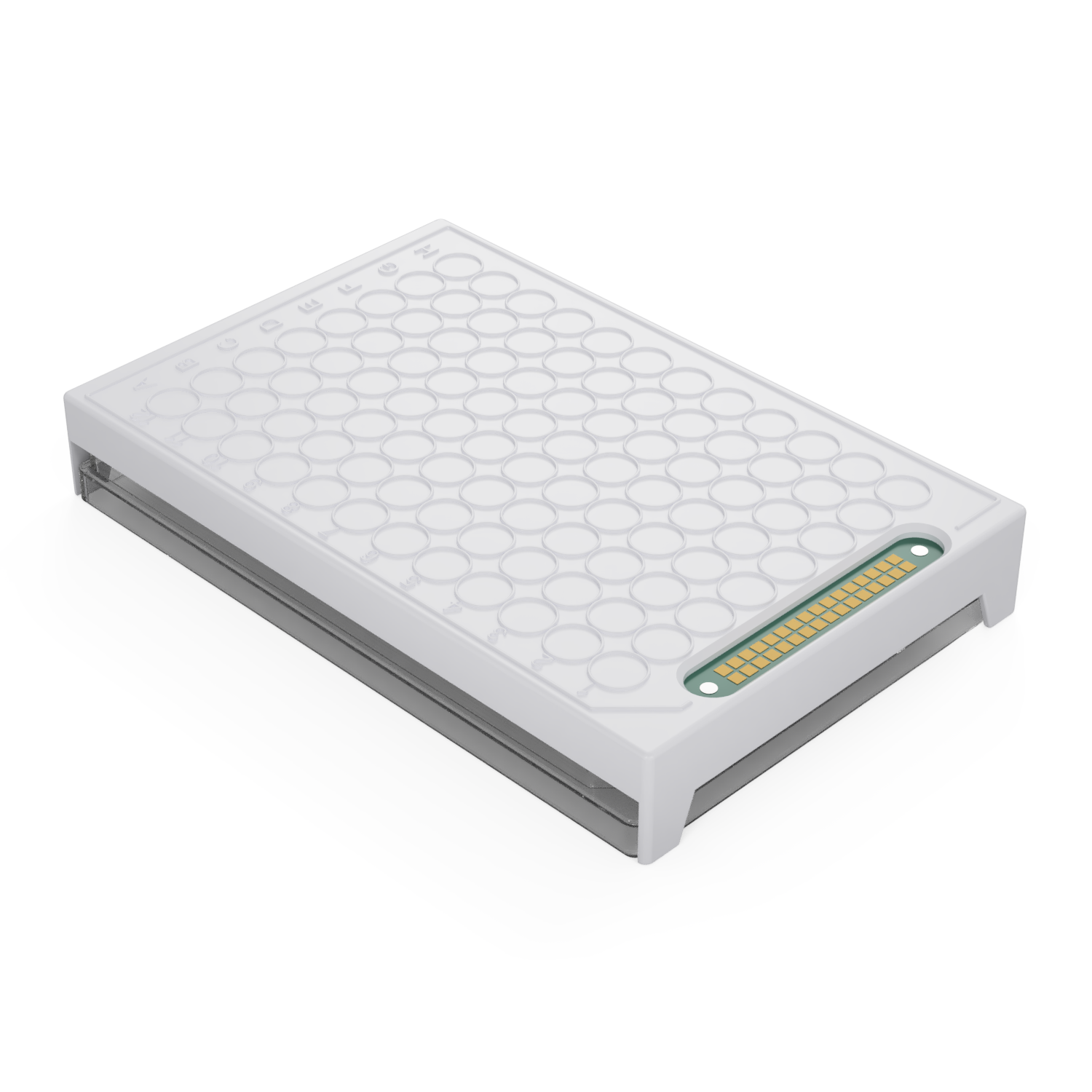

Microplate Compatibility

BRICKs are compatible with standard flat bottom 24, 48, and 96-well plates.

Precise Control Over Electrochemical Effects

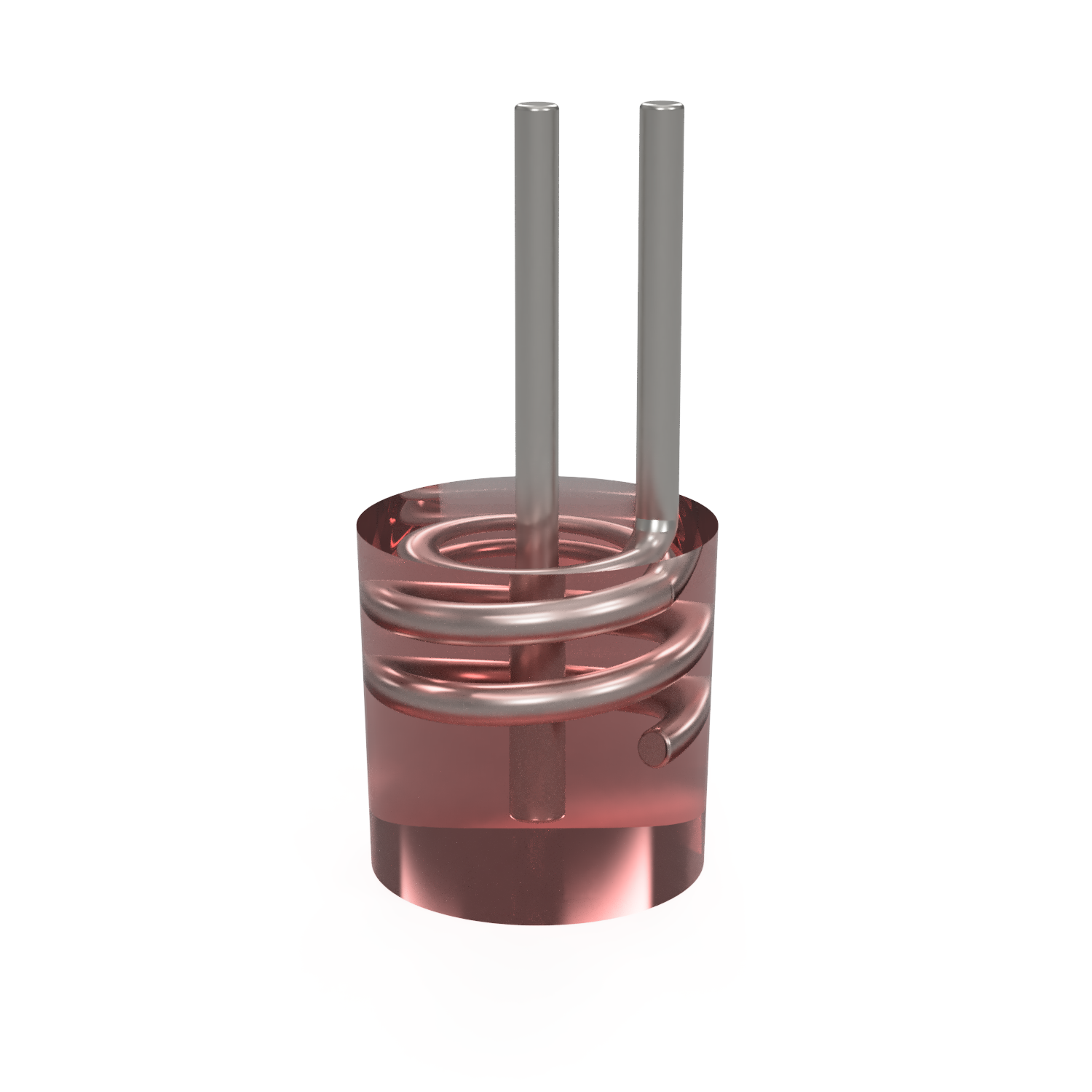

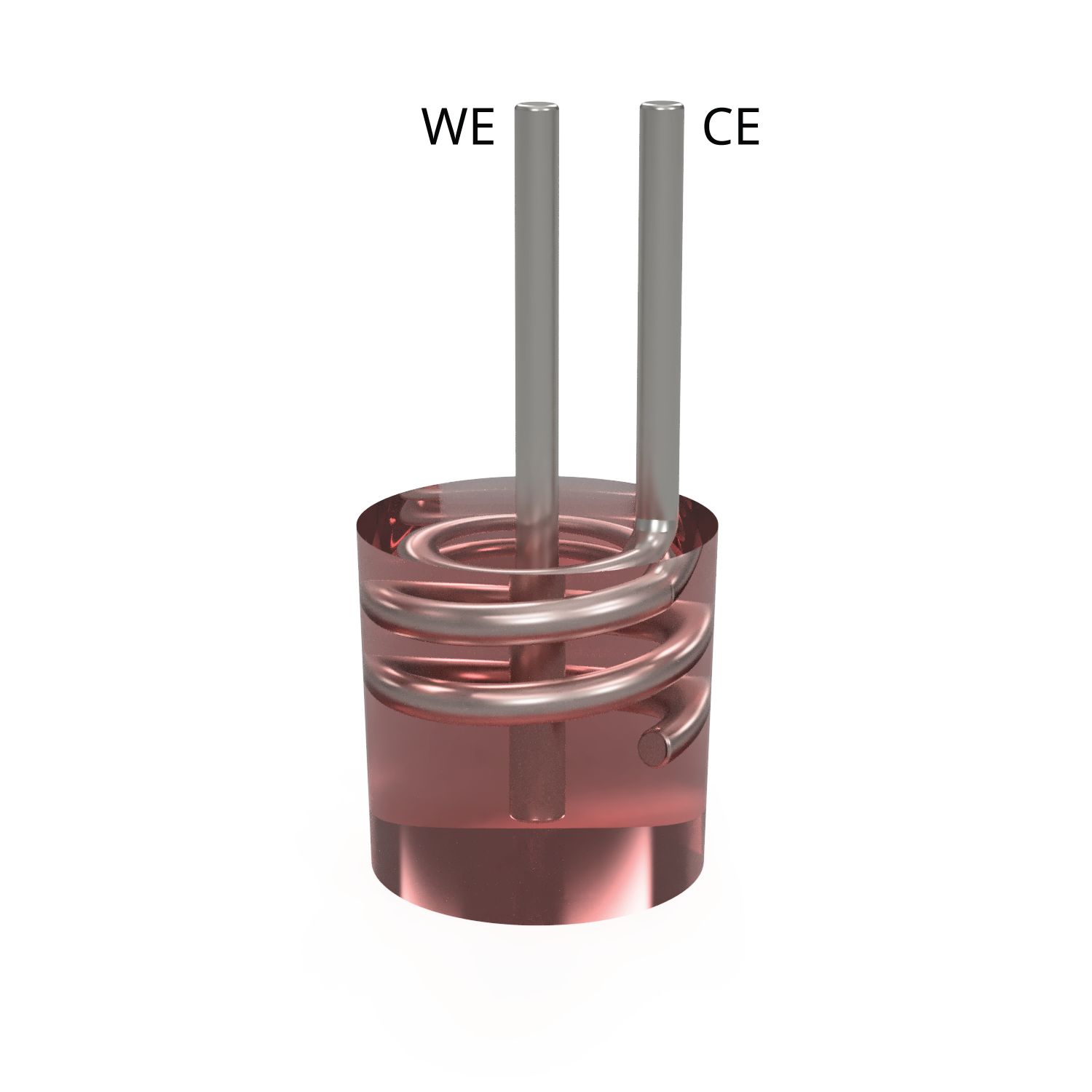

BRICK 1-well electrode configuration detail - working and counter electrodes in single cell culture well, with description
Multichannel Electrochemical System - universal, plug-and-play solution designed to deliver programmable electrochemical (galvanic) treatments directly to cell cultures in standard multi-well microplates - bottom corner view_2
Multichannel Electrochemical System - universal, plug-and-play solution designed to deliver programmable electrochemical (galvanic) treatments directly to cell cultures in standard multi-well microplates - top side view_2

Single Well configuration

Both Working Electrode (WE) and Counter Electrode (CE) are placed in the same well – enabling both anodic and cathodic electrochemical reactions to influence cellular behavior.

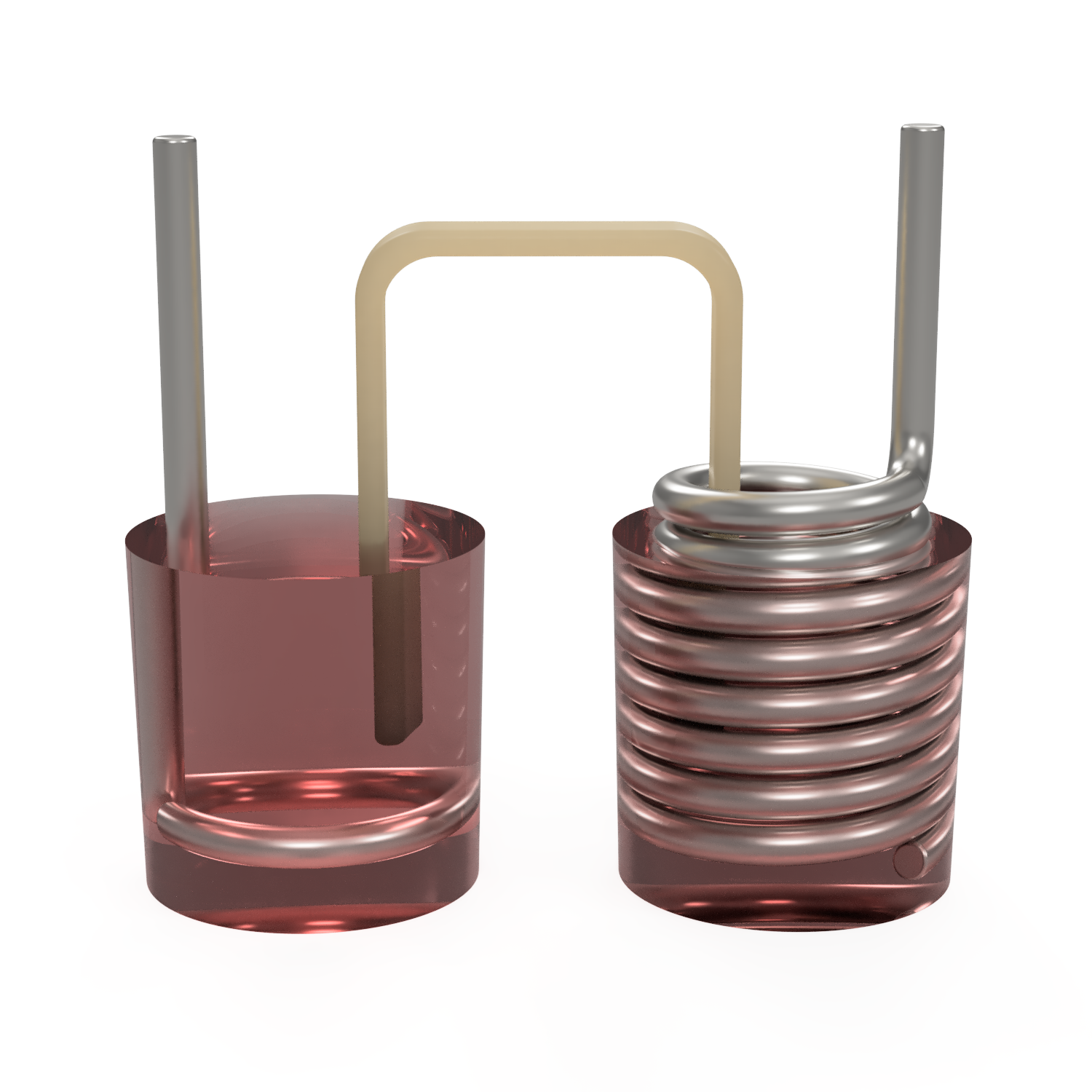

BRICK 2-well electrode configuration detail - working and counter electrodes in separate cell culture wells connected by a salt bridge, with description

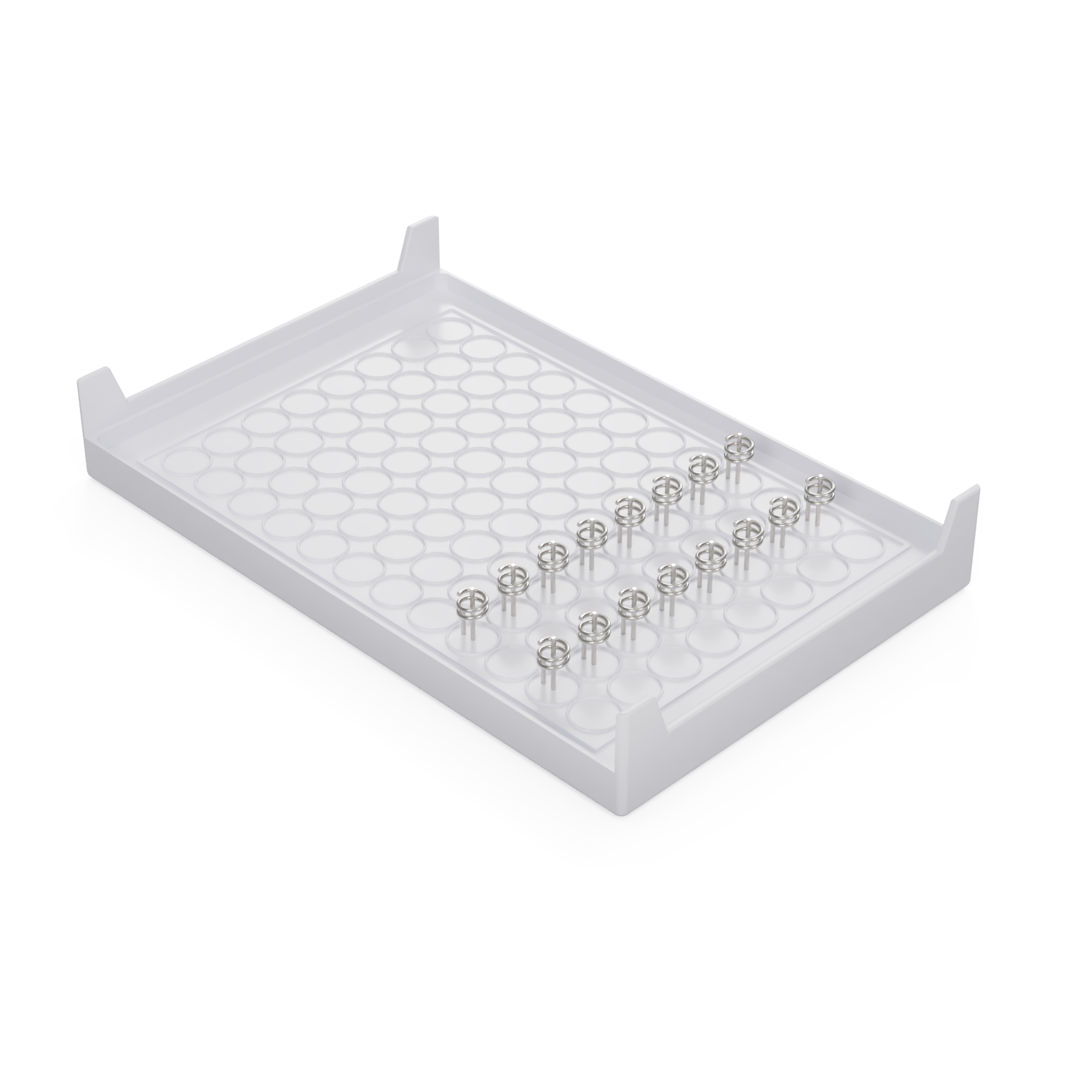

Multichannel Electrochemical System - universal, plug-and-play solution designed to deliver programmable electrochemical (galvanic) treatments directly to cell cultures in standard multi-well microplates - bottom corner view
Multichannel Electrochemical System - universal, plug-and-play solution designed to deliver programmable electrochemical (galvanic) treatments directly to cell cultures in standard multi-well microplates - top corner expanded view_2
Multichannel Electrochemical System - universal, plug-and-play solution designed to deliver programmable electrochemical (galvanic) treatments directly to cell cultures in standard multi-well microplates - top sidev view_2

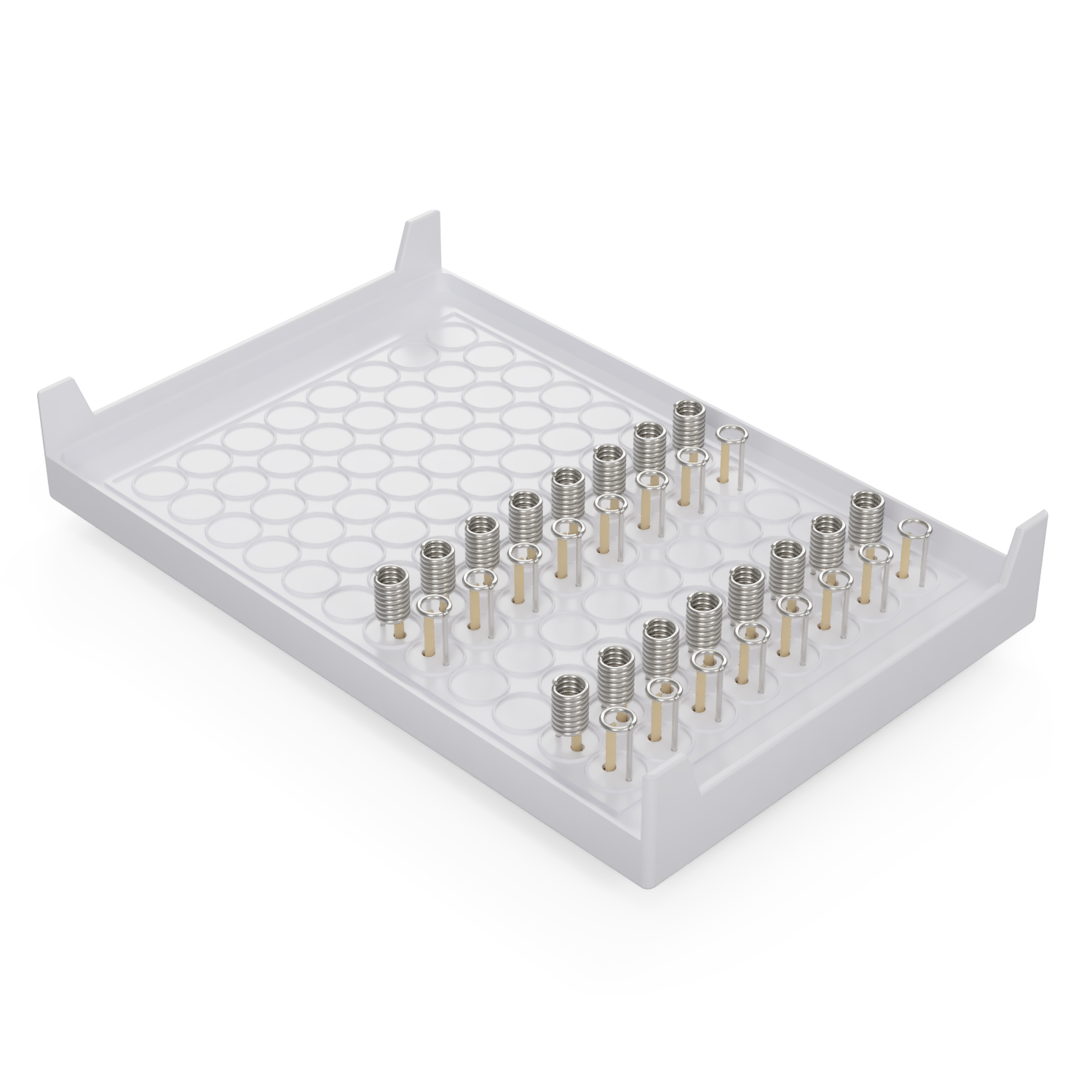

Double Well configuration

Working Electrode (WE) and Counter Electrode (CE) are placed in separate wells connected by a disposable salt bridge – effectively separating anodic and cathodic electrochemical reactions, allowing for precise control over electrochemical processes that influence cellular behavior.

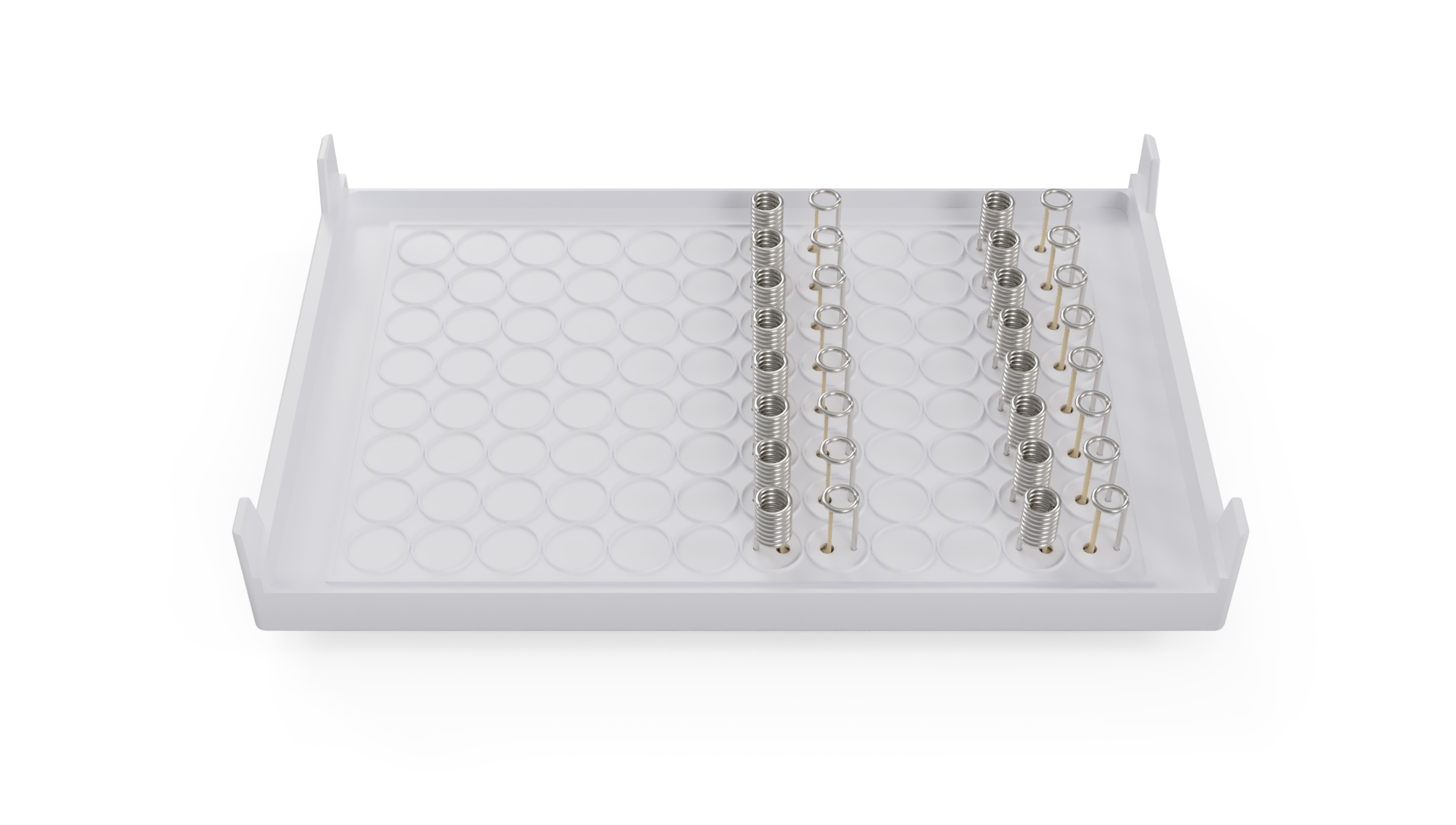

Each BRICK includes 2 columns of 8 electrode pairs. One column is active (controlled via GALSTAT 8C), and the second can be used as a negative control.

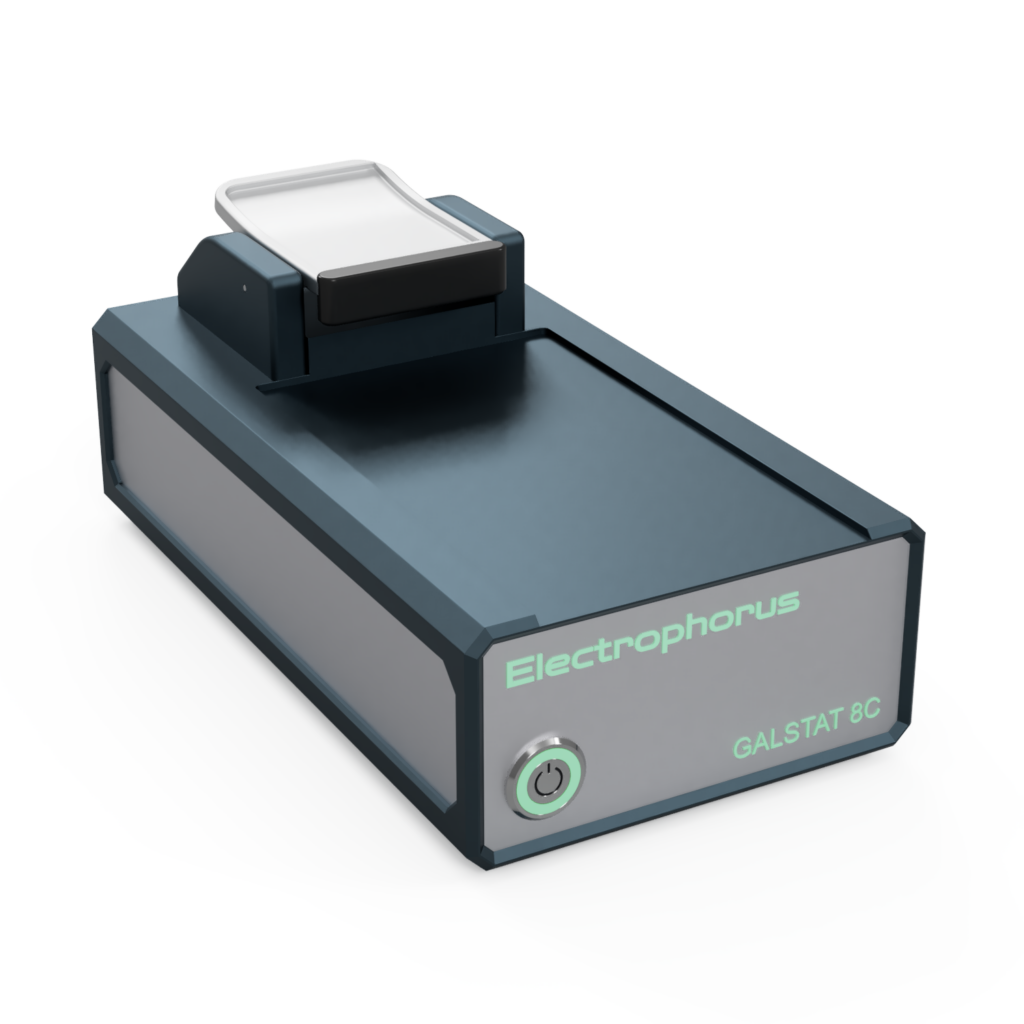

8-channel programamble galvanostat, top corner view - without electrode system

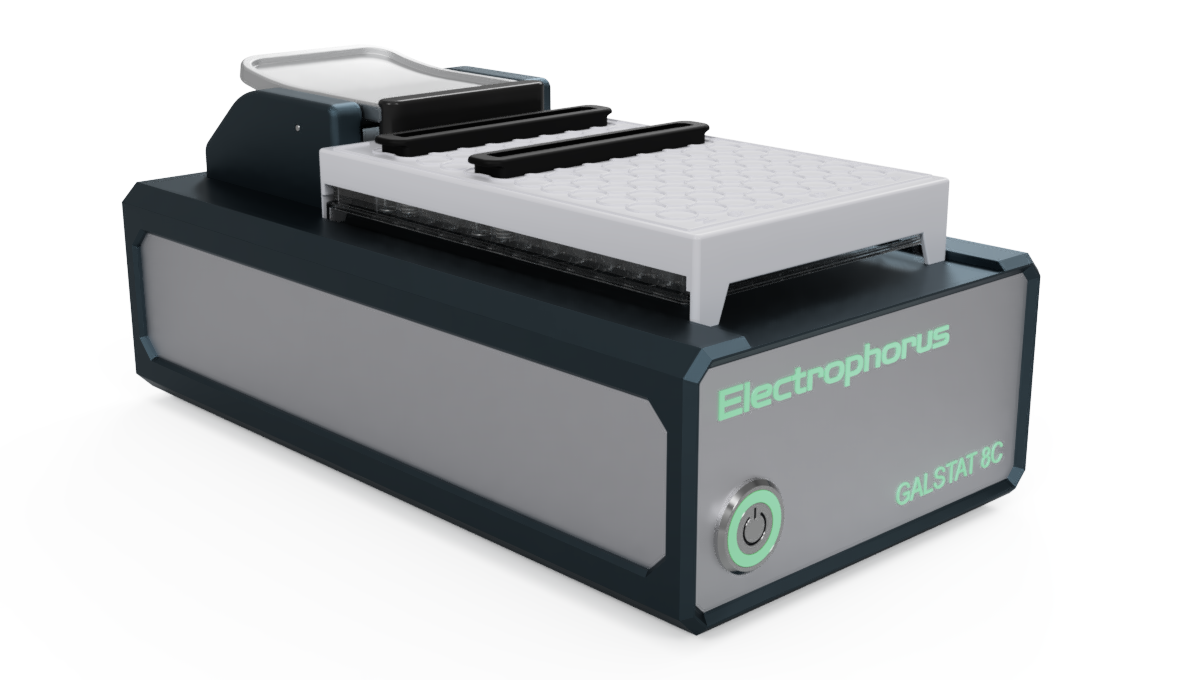

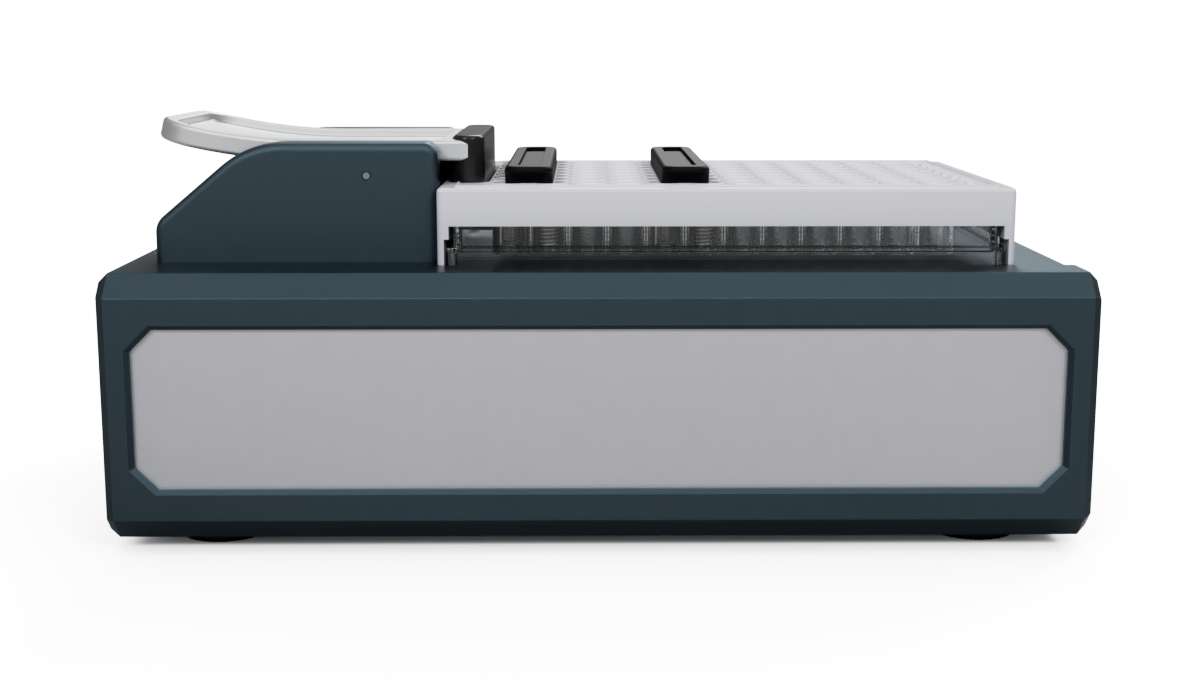

GALSTAT 8C

8-Channel Galvanostat

A compact, robust, and fully programmable galvanostat built for demanding lab environments.

Electrical Specs:

  • 8 Independently Controlled Channels
  • Bluetooth-Enabled with a user-friendly GUI
  • Battery Powered for wireless operation inside incubators or flow hoods
Current Range ±1 mA
Current Resolution 100 nA
Voltage Compliance ±10 V

Application Areas

Our system is designed for cutting-edge research in:

  • Bioelectronic Medicine
  • Electrochemotherapy
  • Tissue Engineering
  • Regenerative Medicine
  • Electrochemical Biosensing
  • Electrical stimulation
  • Electroactive Scaffolds
  • Wound Healing
  • Electrophysiology
  • Electromicrobiology
  • Redox biology
  • And others ...

Not sure if our system fits your experiment? We’ll be happy to help you assess the use case.

8-channel programamble galvanostat, top view

Configure BRICK to Fit Your Unique Application

Select from Available Options:

2-electrode system insertable into microplate consisting of titanium cathode and anode

Single Well Configuration

Both Working Electrode (WE) and Counter Electrode (CE) are placed in the same well

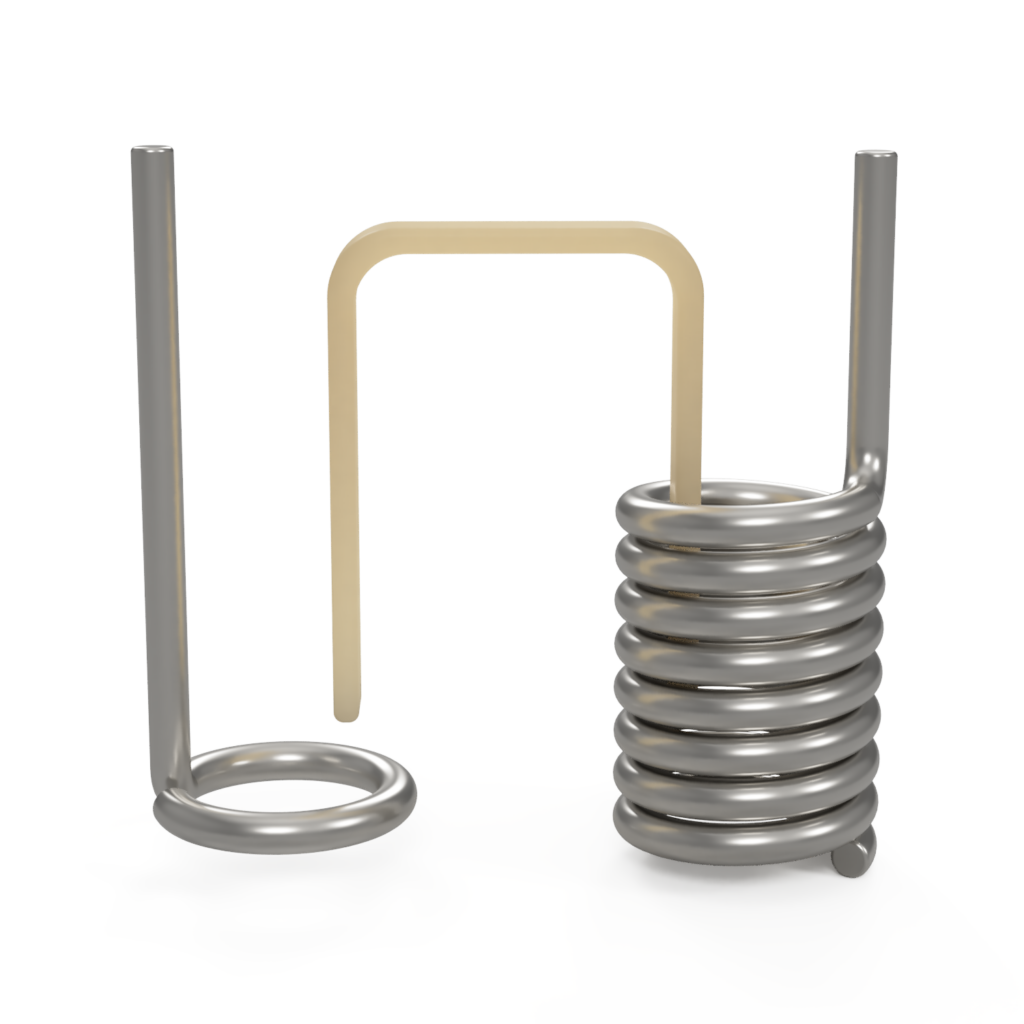

2-electrode system insertable into microplate consisting of titanium cathode and anode separated by a salt bridge

Double Well Configuration

Working Electrode (WE) and Counter Electrode (CE) are placed in separate wells connected by a disposable salt bridge

electrode materials aviable for our multichannel electrochemical systems featuring: Stainless steel, platinum, gold, titanium and titanium ocated with PEDOT:PSS polymer and Graphite

Electrode Material

Stainless Steel, Titanium, or Titanium coated with Gold, Platinum, PEDOT:PSS and Graphite.

Multichannel Electrochemical System - universal, plug-and-play solution designed to deliver programmable electrochemical (galvanic) treatments directly to cell cultures in standard multi-well microplates - top corner view_2

Microplate compatibility

 24, 48, and 96-well plate

Ready to Supercharge Your Research?

Let’s talk about your application and how our BRICK + GALSTAT 8C system can empower your work.
